Webhooks

Overview

Webhooks allow Wave to notify your application in real-time when important events occur, such as completed payments, failed transactions or received funds. Instead of repeatedly polling Wave's API for updates, your application receives instant notifications as events happen.

How Webhooks Work

  1. You register a webhook URL in your Wave business portal with the events you want to receive
  2. Wave sends HTTP POST requests to your URL when subscribed events occur
  3. Your application processes the event and responds with a success status code
  4. Wave handles retries if your endpoint is temporarily unavailable

Common Use Cases

Getting Started

This guide will walk you through:

  1. Setting up webhook endpoints on your server
  2. Securing your webhooks with proper authentication
  3. Registering webhooks in the Wave business portal

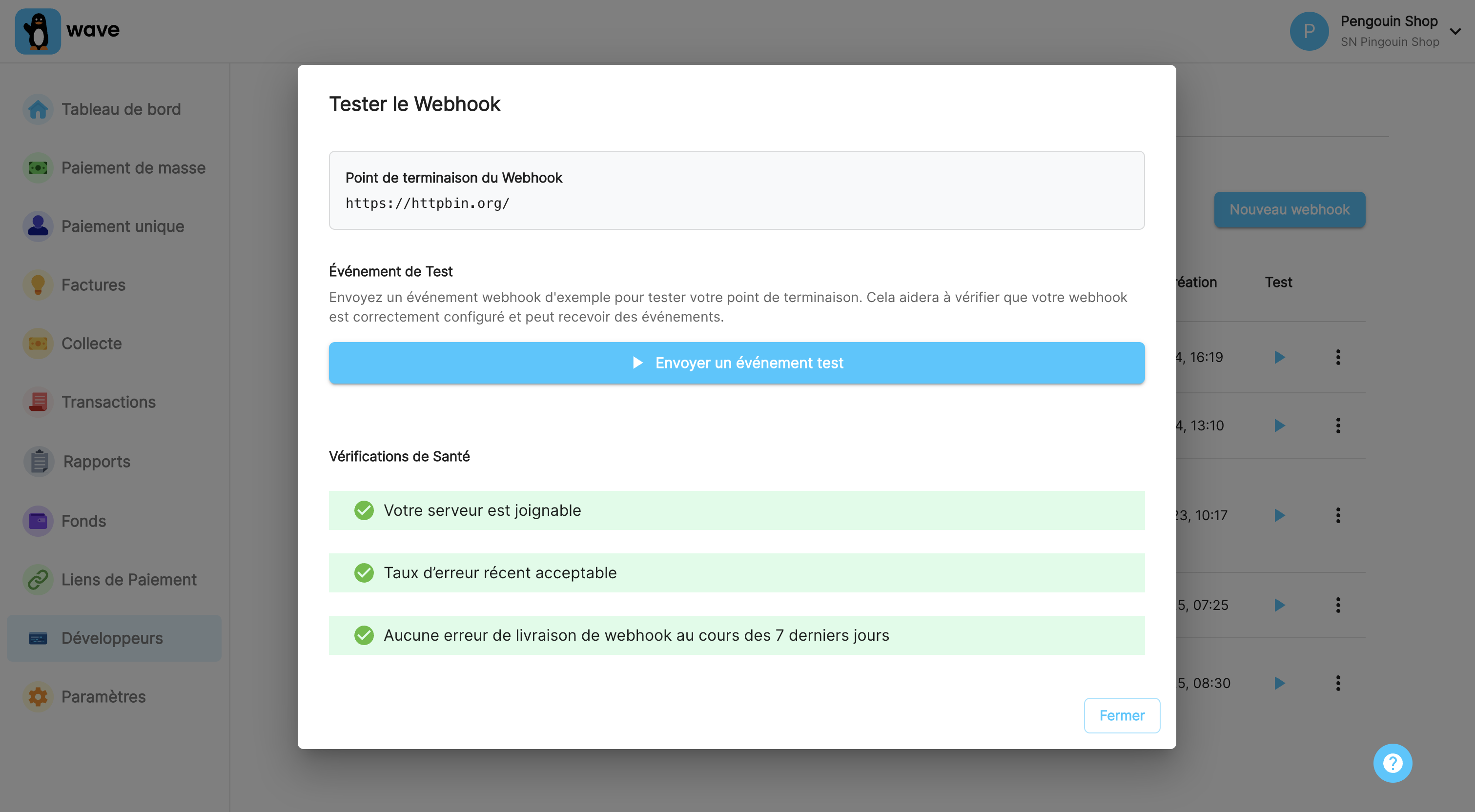

  4. Testing your implementation to verify it works
  5. Understanding event types and their payloads

Setting Up Endpoints

Before registering webhooks with Wave, you need to create endpoints on your server to receive and process webhook notifications.

Endpoint Requirements

Your webhook endpoint must:

Basic Endpoint Structure

Here's what a basic webhook endpoint looks like:

@app.route('/webhooks/wave', methods=['POST'])
def handle_wave_webhook():
    # 1. Get the raw request body and headers
    raw_body = request.get_data()
    wave_signature = request.headers.get('Wave-Signature')

    # 2. Verify the webhook signature (see Security section)
    if not verify_signature(raw_body, wave_signature):
        return 'Invalid signature', 401

    # 3. Parse the event data
    event_data = request.json
    event_type = event_data['type']

    # 4. Respond quickly with success
    # (Do heavy processing asynchronously)
    return 'OK', 200

def verify_signature(body, signature):
    # Signature verification logic (see Security section)
    pass

const express = require('express');
const app = express();

// Middleware to capture raw body
app.use('/webhooks/wave', express.raw({type: 'application/json'}));

app.post('/webhooks/wave', (req, res) => {
    // 1. Get the raw request body and headers
    const rawBody = req.body;
    const waveSignature = req.headers['wave-signature'];

    // 2. Verify the webhook signature (see Security section)
    if (!verifySignature(rawBody, waveSignature)) {
        return res.status(401).send('Invalid signature');
    }

    // 3. Parse the event data
    const eventData = JSON.parse(rawBody);
    const eventType = eventData.type;

    // 4. Respond quickly with success
    // (Do heavy processing asynchronously)
    res.status(200).send('OK');
});

function verifySignature(body, signature) {
    // Signature verification logic (see Security section)
    return true;
}

<?php
// webhook_handler.php

// 1. Get the raw request body and headers
$rawBody = file_get_contents('php://input');
$waveSignature = $_SERVER['HTTP_WAVE_SIGNATURE'] ?? '';

// 2. Verify the webhook signature (see Security section)
if (!verifySignature($rawBody, $waveSignature)) {
    http_response_code(401);
    echo 'Invalid signature';
    exit;
}

// 3. Parse the event data
$eventData = json_decode($rawBody, true);
$eventType = $eventData['type'];

// 4. Respond quickly with success
// (Do heavy processing asynchronously)
http_response_code(200);
echo 'OK';

function verifySignature($body, $signature) {
    // Signature verification logic (see Security section)
    return true;
}
?>

@RestController
public class WebhookController {

    @PostMapping("/webhooks/wave")
    public ResponseEntity<String> handleWaveWebhook(
            HttpServletRequest request,
            @RequestBody String rawBody) {

        // 1. Get the raw request body and headers
        String waveSignature = request.getHeader("Wave-Signature");

        // 2. Verify the webhook signature (see Security section)
        if (!verifySignature(rawBody, waveSignature)) {
            return ResponseEntity.status(401).body("Invalid signature");
        }

        // 3. Parse the event data
        ObjectMapper mapper = new ObjectMapper();
        try {
            JsonNode eventData = mapper.readTree(rawBody);
            String eventType = eventData.get("type").asText();

            // 4. Respond quickly with success
            // (Do heavy processing asynchronously)
            return ResponseEntity.ok("OK");

        } catch (Exception e) {
            return ResponseEntity.status(400).body("Invalid JSON");
        }
    }

    private boolean verifySignature(String body, String signature) {
        // Signature verification logic (see Security section)
        return true;
    }
}

require 'sinatra'
require 'json'

post '/webhooks/wave' do
  # 1. Get the raw request body and headers
  raw_body = request.body.read
  wave_signature = request.env['HTTP_WAVE_SIGNATURE']

  # 2. Verify the webhook signature (see Security section)
  unless verify_signature(raw_body, wave_signature)
    status 401
    return 'Invalid signature'
  end

  # 3. Parse the event data
  event_data = JSON.parse(raw_body)
  event_type = event_data['type']

  # 4. Respond quickly with success
  # (Do heavy processing asynchronously)
  status 200
  'OK'
end

def verify_signature(body, signature)
  # Signature verification logic (see Security section)
  true
end

package main

import (
    "encoding/json"
    "io/ioutil"
    "net/http"
)

func handleWaveWebhook(w http.ResponseWriter, r *http.Request) {
    // 1. Get the raw request body and headers
    rawBody, err := ioutil.ReadAll(r.Body)
    if err != nil {
        http.Error(w, "Failed to read body", http.StatusBadRequest)
        return
    }
    waveSignature := r.Header.Get("Wave-Signature")

    // 2. Verify the webhook signature (see Security section)
    if !verifySignature(rawBody, waveSignature) {
        http.Error(w, "Invalid signature", http.StatusUnauthorized)
        return
    }

    // 3. Parse the event data
    var eventData map[string]interface{}
    if err := json.Unmarshal(rawBody, &eventData); err != nil {
        http.Error(w, "Invalid JSON", http.StatusBadRequest)
        return
    }
    eventType := eventData["type"].(string)

    // 4. Respond quickly with success
    // (Do heavy processing asynchronously)
    w.WriteHeader(http.StatusOK)
    w.Write([]byte("OK"))
}

func verifySignature(body []byte, signature string) bool {
    // Signature verification logic (see Security section)
    return true
}

func main() {
    http.HandleFunc("/webhooks/wave", handleWaveWebhook)
    http.ListenAndServe(":8080", nil)
}

using Microsoft.AspNetCore.Mvc;
using System.Text.Json;

[ApiController]
[Route("webhooks")]
public class WebhookController : ControllerBase
{
    [HttpPost("wave")]
    public async Task<IActionResult> HandleWaveWebhook()
    {
        // 1. Get the raw request body and headers
        using var reader = new StreamReader(Request.Body);
        var rawBody = await reader.ReadToEndAsync();
        var waveSignature = Request.Headers["Wave-Signature"].FirstOrDefault();

        // 2. Verify the webhook signature (see Security section)
        if (!VerifySignature(rawBody, waveSignature))
        {
            return Unauthorized("Invalid signature");
        }

        // 3. Parse the event data
        try
        {
            var eventData = JsonSerializer.Deserialize<JsonElement>(rawBody);
            var eventType = eventData.GetProperty("type").GetString();

            // 4. Respond quickly with success
            // (Do heavy processing asynchronously)
            return Ok("OK");
        }
        catch (JsonException)
        {
            return BadRequest("Invalid JSON");
        }
    }

    private bool VerifySignature(string body, string signature)
    {
        // Signature verification logic (see Security section)
        return true;
    }
}

Webhook Security

Before registering your webhook, it's crucial to understand how to verify that requests actually come from Wave and not from malicious actors. Wave provides two security strategies for webhook authentication.

Security Strategy Overview

Strategy Security Level Implementation Use Case
Shared Secret ⭐⭐ Simple Quick setup, less secure
Signing Secret ⭐⭐⭐⭐ Advanced Production use, more secure

Recommendation: Use Signing Secret for production applications as it provides better security and prevents certain types of attacks.

Shared Secret

The simplest authentication method where Wave includes your webhook secret as a Bearer token in the Authorization header.

How It Works

  1. Wave includes your secret in every webhook request: Authorization: Bearer YOUR_SECRET
  2. Your endpoint extracts the token and compares it with your stored secret
  3. If they match, the request is authentic

Example Request

POST /your-webhook-endpoint
Host: your-domain.com
Content-Type: application/json
Authorization: Bearer your_webhook_secret
User-Agent: Wave/1.0

{
  "id": "AE5D3JYN6WA",
  "type": "checkout.session.completed",
  "data": {
    // event data
  }
}

A more secure method using HMAC-SHA256 signatures. Wave signs the webhook payload with your secret and includes the signature in the Wave-Signature header.

How It Works

  1. Wave creates a timestamp and combines it with the request body
  2. Wave signs this combined data using HMAC-SHA256 and your secret
  3. Wave sends the signature in the Wave-Signature header
  4. Your endpoint verifies the signature matches what you expect

Signature Format

The Wave-Signature header contains a timestamp and signature(s):

Wave-Signature: t=1639081943,v1=942119aedf9fa377844cf010785fe14ef8478c72af0b73d62ea3941335b526a8

Verification Steps

  1. Extract timestamp and signatures from the Wave-Signature header
  2. Create the payload by combining timestamp + request body
  3. Compute expected signature using HMAC-SHA256 with your secret
  4. Compare signatures to verify authenticity
  5. Check timestamp to prevent replay attacks (reject requests older than 5 minutes)

Signature verification implementation:



<?php
function webhook_verify_signature_and_decode($wave_webhook_secret, $wave_signature, $webhook_body) {
    // Uncomment var_dump if you need to debug the 3 input values:
    // var_dump($wave_webhook_secret, $wave_signature, $webhook_body);

    $parts = explode(",", $wave_signature);
    $timestamp = explode("=", $parts[0])[1];

    $signatures = array();
    foreach (array_slice($parts, 1) as $signature) {
        $signatures[] = explode("=", $signature)[1];
    }

    $computed_hmac = hash_hmac("sha256", $timestamp . $webhook_body, $wave_webhook_secret);
    $valid = in_array($computed_hmac, $signatures);

    if($valid) {
        # The request is valid, you can proceed using the decoded contents.
        return json_decode($webhook_body);
    } else {
        die("Invalid webhook signature.");
    }
}

// This key is given to you by a Wave Representative when we register
// your webhook URL. (This is different from the API key)
$wave_webhook_secret = "wave_sn_WHS_xz4m6g8rjs9bshxy05xj4khcvjv7j3hcp4fbpvv6met0zdrjvezg";

// # This header is sent by Wave in each webhook POST request.
// (The plain HTTP header is 'Wave-Signature')
$wave_signature = $_SERVER['HTTP_WAVE_SIGNATURE'];

// The body of the request, as a plain string, not yet parsed to JSON:
$webhook_body = file_get_contents('php://input');

$webhook_json = webhook_verify_signature_and_decode($wave_webhook_secret, $wave_signature, $webhook_body)

// You can now proceed to use the webhook data to process the request:
$webhook_type = $webhook_json->type;
$webhook_data = $webhook_json->data;
?>

const crypto = require('crypto');

const validateWaveSignature = (waveSignature, rawBody, webhookSecret) => {
  const parts = waveSignature.split(',');

  const timestampPart = parts.find(comp => comp.startsWith('t='));
  const timestamp = timestampPart?.split("=")[1];

  const signatureParts = parts.filter(comp => comp.startsWith('v1='));
  const signatures = signatureParts.map(s => {return s.split("=")[1]})

  const payload = timestamp + rawBody;

  const calculatedSignature = crypto.createHmac('sha256', webhookSecret).update(payload).digest("hex");

  return signatures.includes(calculatedSignature);
};

import java.nio.charset.StandardCharsets;
import java.security.GeneralSecurityException;
import java.util.ArrayList;
import java.util.List;
import javax.crypto.Mac;
import javax.crypto.spec.SecretKeySpec;

public class WaveWebhookSignatureVerifier {
    private static final byte[] HEX_ARRAY = "0123456789abcdef".getBytes(StandardCharsets.US_ASCII);

    public static boolean verifySignature(String waveSignature, String body, String webhookSecret) throws GeneralSecurityException {
        final String[] waveSignatureParts = waveSignature.split(",");
        String timestamp = "";
        List<String> signatures = new ArrayList<>();

        for (String elem : waveSignatureParts) {
            String[] keyval = elem.split("=");
            String key = keyval[0];
            String val = keyval[1];
            // Uncomment this if you want to see which values were extracted:
            // System.out.printf("key: %s, val: %s %n", key, val);
            if (key.equals("t")) {
                timestamp = val;
            } else {
                signatures.add(val);
            }
        }

        String data = timestamp + body;

        Mac sha256_HMAC = Mac.getInstance("HmacSHA256");
        SecretKeySpec secret_key = new SecretKeySpec(webhookSecret.getBytes(StandardCharsets.UTF_8), "HmacSHA256");
        sha256_HMAC.init(secret_key);
        byte[] hash = sha256_HMAC.doFinal(data.getBytes(StandardCharsets.UTF_8));


        String calculatedSignature = bytesToHex(hash);
        // Uncomment this if you want to see what was calculated:
        // System.out.printf("Signature: %s %n", calculatedSignature);

        return signatures.contains(calculatedSignature);
    }


    private static String bytesToHex(byte[] bytes) {
        byte[] hexChars = new byte[bytes.length * 2];
        for (int j = 0; j < bytes.length; j++) {
            int v = bytes[j] & 0xFF;
            hexChars[j * 2] = HEX_ARRAY[v >>> 4];
            hexChars[j * 2 + 1] = HEX_ARRAY[v & 0x0F];
        }
        return new String(hexChars, StandardCharsets.UTF_8);
    }
}

require 'openssl'

def validate_wave_signature(wave_signature, raw_body, webhook_secret)
  parts = wave_signature.split(',')
  timestamp = parts.find { |comp| comp.start_with?('t=') }&.split('=')&.last
  signatures = parts.select { |comp| comp.start_with?('v1=') }.map { |s| s.split('=').last }

  payload = timestamp + raw_body

  calculated_signature = OpenSSL::HMAC.hexdigest('sha256', webhook_secret, payload)

  signatures.include?(calculated_signature)
end

import hmac
import hashlib

def validate_wave_signature(wave_signature, raw_body, webhook_secret):
    parts = wave_signature.split(',')
    timestamp = parts[0].split('=')[1]
    signatures = [s.split('=')[1] for s in parts[1:]]

    payload = timestamp + raw_body

    calculated_signature = hmac.new(webhook_secret.encode('utf-8'), payload.encode('utf-8'), hashlib.sha256).hexdigest()

    return calculated_signature in signatures

package main

import (
  "crypto/hmac"
  "crypto/sha256"
  "encoding/hex"
  "fmt"
  "strings"
)

func validateWaveSignature(waveSignature, rawBody, webhookSecret string) bool {
  parts := strings.Split(waveSignature, ",")
  timestamp := strings.Split(parts[0], "=")[1]
  signatures := []string{}
  for _, part := range parts[1:] {
    signatures = append(signatures, strings.Split(part, "=")[1])
  }

  payload := timestamp + rawBody

  h := hmac.New(sha256.New, []byte(webhookSecret))
  h.Write([]byte(payload))
  calculatedSignature := hex.EncodeToString(h.Sum(nil))

  for _, signature := range signatures {
    if signature == calculatedSignature {
      return true
    }
  }
  return false
}

using System;
using System.Collections.Generic;
using System.Linq;
using System.Security.Cryptography;
using System.Text;

public class WaveSignatureValidator
{
    public static bool ValidateSignature(string waveSignature, string body, string webhookSecret)
    {
        var parts = waveSignature.Split(",");
        var timestamp = parts.First(p => p.StartsWith("t=")).Split("=")[1];
        var signatures = parts.Where(p => p.StartsWith("v1=")).Select(p => p.Split("=")[1]).ToList();

        var payload = timestamp + body;

        using (var hmac = new HMACSHA256(Encoding.UTF8.GetBytes(webhookSecret)))
        {
            var hash = hmac.ComputeHash(Encoding.UTF8.GetBytes(payload));
            var calculatedSignature = BitConverter.ToString(hash).Replace("-", "").ToLower();

            return signatures.Contains(calculatedSignature);
        }
    }
}

Help, the signature validation fails

The most common reason for this is that some frameworks automatically parse the body of the webhook you receive. This gives the wrong result when you calculate the hash. The reason for this is that the signature is only unique if the key order in the JSON hasn't changed, there are no additional or missing spaces and there are no additional line breaks.

The solution is to not parse the body but instead do the signature validation against the raw string you received.

Here are some common examples that indicate this problem.

Example Wave-Signature validation

Webhook secret

'wave_sn_WHS_xz4m6g8rjs9bshxy05xj4khcvjv7j3hcp4fbpvv6met0zdrjvezg'

Wave-Signature header of the webhook's POST request to your server

't=1667920421,v1=53c971695230e9c51b1030d673eee76e70bbcdf8a7c5b8c1d44e0b8b1329647b'

Webhook body of the webhook's POST request to your server

'{"id": "AE_ijzo7oGgrlM7", "type": "checkout.session.completed", "data": {"id": "cos-1b01sghpg100j", "amount": "100", "checkout_status": "complete", "client_reference": null, "currency": "XOF", "error_url": "https://example.com/error", "last_payment_error": null, "business_name": "Annas Apiaries", "payment_status": "succeeded", "success_url": "https://example.com/success", "wave_launch_url": "https://pay.wave.com/c/cos-1b01sghpg100j?a=100&c=XOF&m=Annas%20Apiaries", "when_completed": "2022-11-08T15:05:45Z", "when_created": "2022-11-08T15:05:32Z", "when_expires": "2022-11-09T15:05:32Z", "transaction_id": "TCN4Y4ZC3FM"}}'

The following is a full example for webhook signature validation. The 3 things you need are

Note that 3 examples are quoted with ', since they are strings but the outer quotes aren't part of the string.

Follow the instructions under Example Wave-Signature validation to verify the signature in the example.

Example 1

This is a correct payload:

'{"id": "AE_ijzo7oGgrlM7", "type": "checkout.session.completed", "data": {"id": "cos-1b01sghpg100j", "amount": "100", "checkout_status": "complete", "client_reference": null, "currency": "XOF", "error_url": "https://example.com/error", "last_payment_error": null, "business_name": "Annas Apiaries", "payment_status": "succeeded", "success_url": "https://example.com/success", "wave_launch_url": "https://pay.wave.com/c/cos-1b01sghpg100j?a=100&c=XOF&m=Annas%20Apiaries", "when_completed": "2022-11-08T15:05:45Z", "when_created": "2022-11-08T15:05:32Z", "when_expires": "2022-11-09T15:05:32Z", "transaction_id": "TCN4Y4ZC3FM"}}'

Example 2

The missing spaces indicate that the body was parsed as JSON and then converted into string again:

'{"id":"AE_ijzo7oGgrlM7","type":"checkout.session.completed","data":{"id":"cos-1b01sghpg100j","amount":"100","checkout_status":"complete","client_reference":null,"currency":"XOF","error_url":"https://example.com/error","last_payment_error":null,"business_name":"AnnasApiaries","payment_status":"succeeded","success_url":"https://example.com/success","wave_launch_url":"https://pay.wave.com/c/cos-1b01sghpg100j?a=100&c=XOF&m=Annas%20Apiaries","when_completed":"2022-11-08T15:05:45Z","when_created":"2022-11-08T15:05:32Z","when_expires":"2022-11-09T15:05:32Z","transaction_id":"TCN4Y4ZC3FM"}}'

Example 3

You only hash the data payload but you need the full body:

{"id": "cos-1b01sghpg100j", "amount": "100", "checkout_status": "complete", "client_reference": null, "currency": "XOF", "error_url": "https://example.com/error", "last_payment_error": null, "business_name": "Annas Apiaries", "payment_status": "succeeded", "success_url": "https://example.com/success", "wave_launch_url": "https://pay.wave.com/c/cos-1b01sghpg100j?a=100&c=XOF&m=Annas%20Apiaries", "when_completed": "2022-11-08T15:05:45Z", "when_created": "2022-11-08T15:05:32Z", "when_expires": "2022-11-09T15:05:32Z", "transaction_id": "TCN4Y4ZC3FM"}

Example 4

We don't send line breaks in the body, so the JSON below is not the exact body string content:

{
 "id": "AE_ijzo7oGgrlM7",
 "type": "checkout.session.completed",
 "data": {
    "id": "cos-1b01sghpg100j",
    "amount": "100",
    "checkout_status": "complete",
    "client_reference": null,
    "currency": "XOF",
    "error_url": "https://example.com/error",
    "last_payment_error": null,
    "business_name": "Annas Apiaries",
    "payment_status": "succeeded",
    "success_url": "https://example.com/success",
    "wave_launch_url": "https://pay.wave.com/c/cos-1b01sghpg100j?a=100&c=XOF&m=Annas%20Apiaries",
    "when_completed": "2022-11-08T15:05:45Z",
    "when_created": "2022-11-08T15:05:32Z",
    "when_expires": "2022-11-09T15:05:32Z",
    "transaction_id": "TCN4Y4ZC3FM"
 }
}

Webhook Registration

Now that you understand security, you can register your webhook with Wave through the Business Portal.

Registration Steps

  1. Access the Developer Portal Go to the Webhooks section in your Wave Business Portal

  2. Add New Webhook Click "Add New Webhook" and provide your endpoint details

  3. Configure Your Webhook

    • Endpoint URL: Your server's webhook URL (must be HTTPS)
    • Security Strategy: Choose between Shared Secret or Signing Secret (see above)
    • Event Types: Select which events you want to receive (see Event Types section)

  4. Save Your Secret After registration, Wave shows you the webhook secret. Save this immediately - you won't be able to see it again.

Webhook registration

Webhook registration detail

Webhook registration secret

Testing Your Webhook

Before going live, thoroughly test your webhook implementation to ensure it handles events correctly.

Using the Business Portal

The easiest way to test is using the Webhook Tester in the Business Portal:

  1. Navigate to your registered webhook
  2. Click the test button to send a sample event
  3. Verify your endpoint receives and processes the request correctly

Webhook Tester

Manual Testing Checklist

Test these scenarios to ensure your webhook is production-ready:

Testing with cURL

Replace <your webhook URL> with your server's address:

# Test basic connectivity
curl -X POST '<your webhook URL>' \
  -H 'Content-Type: application/json' \
  -d '{"test_key": "test_value"}'

# Test with realistic event data
curl -X POST '<your webhook URL>' \
  -H 'Content-Type: application/json' \
  -H 'Wave-Signature: t=1639081943,v1=test_signature' \
  -d '{
    "id": "EV_test123",
    "type": "checkout.session.completed",
    "data": {
      "id": "cos-test456",
      "amount": "1000",
      "currency": "XOF",
      "payment_status": "succeeded"
    }
  }'

Advanced Example

Webhook example with a realistic body:

curl -i -X POST <your webhook URL> \
-H 'Content-Type: application/json' \
-H "Wave-Signature: t=123,v1=abc" \
-d '{
    "id": "EV_QvEZuDSQbLdI",
    "type": "checkout.session.completed",
    "data": {
        "id": "cos-18qq25rgr100a",
        "amount": "100",
        "checkout_status": "complete",
        "client_reference": "cbd2c580",
        "currency": "XOF",
        "payment_status": "succeeded",
        "success_url": "https://example.com/success",
        "error_url": "https://example.com/error",
        "wave_launch_url": "https://pay.wave.com/c/cos-18qq25rgr100a",
        "when_completed": "2022-12-08T10:15:32Z",
        "when_created": "2022-12-08T10:13:04Z",
        "when_expires": "2022-12-09T10:13:04Z"
    }
}'

<?php
$ch = curl_init();

curl_setopt($ch, CURLOPT_URL, '<your webhook URL>');
curl_setopt($ch, CURLOPT_RETURNTRANSFER, 1);
curl_setopt($ch, CURLOPT_POST, 1);

$data = array(
  'id' => 'EV_QvEZuDSQbLdI',
  'type' => 'checkout.session.completed',
  'data' => array(
    'id' => 'cos-18qq25rgr100a',
    'amount' => '100',
    'checkout_status' => 'complete',
    'client_reference' => 'cbd2c580',
    'currency' => 'XOF',
    'payment_status' => 'succeeded',
    'success_url' => 'https://example.com/success',
    'error_url' => 'https://example.com/error',
    'wave_launch_url' => 'https://pay.wave.com/c/cos-18qq25rgr100a',
    'when_completed' => '2022-12-08T10:15:32Z',
    'when_created' => '2022-12-08T10:13:04Z',
    'when_expires' => '2022-12-09T10:13:04Z'
  )
);

curl_setopt($ch, CURLOPT_POSTFIELDS, json_encode($data));

$headers = array();
$headers[] = 'Content-Type: application/json';
$headers[] = 'Wave-Signature: t=123,v1=abc';
curl_setopt($ch, CURLOPT_HTTPHEADER, $headers);

$result = curl_exec($ch);
if (curl_errno($ch)) {
  echo 'Error:' . curl_error($ch);
}
curl_close($ch);
?>

var axios = require('axios');
var data = JSON.stringify({"id":"EV_QvEZuDSQbLdI","type":"checkout.session.completed","data":{"id":"cos-18qq25rgr100a","amount":"100","checkout_status":"complete","client_reference":"cbd2c580","currency":"XOF","payment_status":"succeeded","success_url":"https://example.com/success","error_url":"https://example.com/error","wave_launch_url":"https://pay.wave.com/c/cos-18qq25rgr100a","when_completed":"2022-12-08T10:15:32Z","when_created":"2022-12-08T10:13:04Z","when_expires":"2022-12-09T10:13:04Z"}});
var config = {
  method: 'post',
  url: '<your webhook URL>',
  headers: {
    'Content-Type': 'application/json',
    'Wave-Signature': 't=123,v1=abc'
  },
  data: data
};
axios(config)
  .then(function (response) {
    console.log(JSON.stringify(response.data));
  })
  .catch(function (error) {
    console.log(error);
  });

import java.net.URI;
import java.net.http.HttpClient;
import java.net.http.HttpRequest;
import java.net.http.HttpResponse;
import java.net.http.HttpRequest.BodyPublishers;
import java.net.http.HttpRequest.BodyPublisher;
import java.net.http.HttpResponse.BodyHandlers;
import java.util.Map;
import java.util.HashMap;

public class Main {
  public static void main(String[] args) {
    HttpClient client = HttpClient.newHttpClient();
    HttpRequest request = HttpRequest.newBuilder()
      .uri(URI.create("<your webhook URL>"))
      .header("Content-Type", "application/json")
      .header("Wave-Signature", "t=123,v1=abc")
      .POST(BodyPublishers.ofString("{\"id\":\"EV_QvEZuDSQbLdI\",\"type\":\"checkout.session.completed\",\"data\":{\"id\":\"cos-18qq25rgr100a\",\"amount\":\"100\",\"checkout_status\":\"complete\",\"client_reference\":\"cbd2c580\",\"currency\":\"XOF\",\"payment_status\":\"succeeded\",\"success_url\":\"https://example.com/success\",\"error_url\":\"https://example.com/error\",\"wave_launch_url\":\"https://pay.wave.com/c/cos-18qq25rgr100a\",\"when_completed\":\"2022-12-08T10:15:32Z\",\"when_created\":\"2022-12-08T10:13:04Z\",\"when_expires\":\"2022-12-09T10:13:04Z\"}}"))
      .build();
    try {
      HttpResponse<String> response = client.send(request, BodyHandlers.ofString());
      System.out.println(response.body());
    } catch (Exception e) {
      e.printStackTrace();
    }
  }
}

require 'net/http'
require 'uri'
require 'json'

uri = URI.parse("<your webhook URL>")
request = Net::HTTP::Post.new(uri)
request.content_type = "application/json"
request["Wave-Signature"] = "t=123,v1=abc"
request.body = JSON.dump({
  "id" => "EV_QvEZuDSQbLdI",
  "type" => "checkout.session.completed",
  "data" => {
    "id" => "cos-18qq25rgr100a",
    "amount" => "100",
    "checkout_status" => "complete",
    "client_reference" => "cbd2c580",
    "currency" => "XOF",
    "payment_status" => "succeeded",
    "success_url" => "https://example.com/success",
    "error_url" => "https://example.com/error",
    "wave_launch_url" => "https://pay.wave.com/c/cos-18qq25rgr100a",
    "when_completed" => "2022-12-08T10:15:32Z",
    "when_created" => "2022-12-08T10:13:04Z",
    "when_expires" => "2022-12-09T10:13:04Z"
  }
})

req_options = {
  use_ssl: uri.scheme == "https",
}

response = Net::HTTP.start(uri.hostname, uri.port, req_options) do |http|
  http.request(request)
end
puts response.body

import requests

url = '<your webhook URL>'
payload = {
  "id": "EV_QvEZuDSQbLdI",
  "type": "checkout.session.completed",
  "data": {
    "id": "cos-18qq25rgr100a",
    "amount": "100",
    "checkout_status": "complete",
    "client_reference": "cbd2c580",
    "currency": "XOF",
    "payment_status": "succeeded",
    "success_url": "https://example.com/success",
    "error_url": "https://example.com/error",
    "wave_launch_url": "https://pay.wave.com/c/cos-18qq25rgr100a",
    "when_completed": "2022-12-08T10:15:32Z",
    "when_created": "2022-12-08T10:13:04Z",
    "when_expires": "2022-12-09T10:13:04Z"
  }
}
headers = {
  'Content-Type': 'application/json',
  'Wave-Signature': 't=123,v1=abc'
}

response = requests.request("POST", url, headers=headers, json=payload)

print(response.text)

package main

import (
  "bytes"
  "fmt"
  "net/http"
)

func main() {
  url := "<your webhook URL>"
  method := "POST"

  payload := &bytes.Buffer{}
  payload.WriteString(`{"id": "EV_QvEZuDSQbLdI", "type": "checkout.session.completed", "data": {"id": "cos-18qq25rgr100a", "amount": "100", "checkout_status": "complete", "client_reference": "cbd2c580", "currency": "XOF", "payment_status": "succeeded", "success_url": "https://example.com/success", "error_url": "https://example.com/error", "wave_launch_url": "https://pay.wave.com/c/cos-18qq25rgr100a", "when_completed": "2022-12-08T10:15:32Z", "when_created": "2022-12-08T10:13:04Z", "when_expires": "2022-12-09T10:13:04Z"}}`)

  client := &http.Client{}
  req, err := http.NewRequest(method, url, payload)

  if err != nil {
    fmt.Println(err)
    return
  }
  req.Header.Add("Content-Type", "application/json")
  req.Header.Add("Wave-Signature", "t=123,v1=abc")

  res, err := client.Do(req)
  if err != nil {
    fmt.Println(err)
    return
  }
  defer res.Body.Close()

  fmt.Println("response Status:", res.Status)
}

using System;
using System.IO;
using System.Net;
using System.Text;

class Program
{
  static void Main()
  {
    var request = (HttpWebRequest)WebRequest.Create("<your webhook URL>");
    request.Method = "POST";
    request.ContentType = "application/json";
    request.Headers.Add("Wave-Signature", "t=123,v1=abc");

    var data = Encoding.ASCII.GetBytes("{\"id\":\"EV_QvEZuDSQbLdI\",\"type\":\"checkout.session.completed\",\"data\":{\"id\":\"cos-18qq25rgr100a\",\"amount\":\"100\",\"checkout_status\":\"complete\",\"client_reference\":\"cbd2c580\",\"currency\":\"XOF\",\"payment_status\":\"succeeded\",\"success_url\":\"https://example.com/success\",\"error_url\":\"https://example.com/error\",\"wave_launch_url\":\"https://pay.wave.com/c/cos-18qq25rgr100a\",\"when_completed\":\"2022-12-08T10:15:32Z\",\"when_created\":\"2022-12-08T10:13:04Z\",\"when_expires\":\"2022-12-09T10:13:04Z\"}}");
    request.ContentLength = data.Length;

    using (var stream = request.GetRequestStream())
    {
      stream.Write(data, 0, data.Length);
    }

    var response = (HttpWebResponse)request.GetResponse();

    var responseString = new StreamReader(response.GetResponseStream()).ReadToEnd();
    Console.WriteLine(responseString);
  }
}

Full Webhook Example

Full webhook example, including a valid signature. The signature needs to be validated against the webhook secret wave_sn_WHS_xz4m6g8rjs9bshxy05xj4khcvjv7j3hcp4fbpvv6met0zdrjvezg:

curl -i -X POST <your webhook URL> \
-H 'Content-Type: application/json' \
-H "Wave-Signature: t=1667920421,v1=53c971695230e9c51b1030d673eee76e70bbcdf8a7c5b8c1d44e0b8b1329647b" \
-d '{
    "id": "AE_ijzo7oGgrlM7",
     "type": "checkout.session.completed",
      "data": {
        "id": "cos-1b01sghpg100j",
        "amount": "100",
        "checkout_status": "complete",
        "client_reference": null,
        "currency": "XOF",
        "error_url": "https://example.com/error",
        "last_payment_error": null,
        "business_name": "Annas Apiaries",
        "payment_status": "succeeded",
        "success_url": "https://example.com/success",
        "wave_launch_url": "https://pay.wave.com/c/cos-1b01sghpg100j?a=100&c=XOF&m=Annas%20Apiaries",
        "when_completed": "2022-11-08T15:05:45Z",
        "when_created": "2022-11-08T15:05:32Z",
        "when_expires": "2022-11-09T15:05:32Z",
        "transaction_id": "TCN4Y4ZC3FM"
      }
    }'

<?php
$ch = curl_init();

curl_setopt($ch, CURLOPT_URL, '<your webhook URL>');
curl_setopt($ch, CURLOPT_RETURNTRANSFER, 1);
curl_setopt($ch, CURLOPT_POST, 1);

$data = array(
  'id' => 'AE_ijzo7oGgrlM7',
  'type' => 'checkout.session.completed',
  'data' => array(
    'id' => 'cos-1b01sghpg100j',
    'amount' => '100',
    'checkout_status' => 'complete',
    'client_reference' => null,
    'currency' => 'XOF',
    'error_url' => 'https://example.com/error',
    'last_payment_error' => null,
    'business_name' => 'Annas Apiaries',
    'payment_status' => 'succeeded',
    'success_url' => 'https://example.com/success',
    'wave_launch_url' => 'https://pay.wave.com/c/cos-1b01sghpg100j?a=100&c=XOF&m=Annas%20Apiaries',
    'when_completed' => '2022-11-08T15:05:45Z',
    'when_created' => '2022-11-08T15:05:32Z',
    'when_expires' => '2022-11-09T15:05:32Z',
    'transaction_id' => 'TCN4Y4ZC3FM'
  )
);

curl_setopt($ch, CURLOPT_POSTFIELDS, json_encode($data));

$headers = array();
$headers[] = 'Content-Type: application/json';
$headers[] = 'Wave-Signature: t=1667920421,v1=53c971695230e9c51b1030d673eee76e70bbcdf8a7c5b8c1d44e0b8b1329647b';
curl_setopt($ch, CURLOPT_HTTPHEADER, $headers);

$result = curl_exec($ch);
if (curl_errno($ch)) {
  echo 'Error:' . curl_error($ch);
}
curl_close($ch);
?>

var axios = require('axios');
var data = JSON.stringify({"id":"AE_ijzo7oGgrlM7","type":"checkout.session.completed","data":{"id":"cos-1b01sghpg100j","amount":"100","checkout_status":"complete","client_reference":null,"currency":"XOF","error_url":"https://example.com/error","last_payment_error":null,"business_name":"Annas Apiaries","payment_status":"succeeded","success_url":"https://example.com/success","wave_launch_url":"https://pay.wave.com/c/cos-1b01sghpg100j?a=100&c=XOF&m=Annas%20Apiaries","when_completed":"2022-11-08T15:05:45Z","when_created":"2022-11-08T15:05:32Z","when_expires":"2022-11-09T15:05:32Z","transaction_id":"TCN4Y4ZC3FM"}});

var config = {
  method: 'post',
  url: '<your webhook URL>',
  headers: {
    'Content-Type': 'application/json',
    'Wave-Signature': 't=1667920421,v1=53c971695230e9c51b1030d673eee76e70bbcdf8a7c5b8c1d44e0b8b1329647b'
  },
  data : data
};

axios(config)
.then(function (response) {
  console.log(JSON.stringify(response.data));
})
.catch(function (error) {
  console.log(error);
});

import java.net.HttpURLConnection;
import java.net.URL;
import java.io.OutputStream;
import java.io.BufferedReader;
import java.io.InputStreamReader;

public class Main {
  public static void main(String[] args) {
    try {
      URL url = new URL("<your webhook URL>");
      HttpURLConnection conn = (HttpURLConnection) url.openConnection();
      conn.setRequestMethod("POST");
      conn.setRequestProperty("Content-Type", "application/json");
      conn.setRequestProperty("Wave-Signature", "t=1667920421,v1=53c971695230e9c51b1030d673eee76e70bbcdf8a7c5b8c1d44e0b8b1329647b");

      conn.setDoOutput(true);
      OutputStream os = conn.getOutputStream();
      byte[] input = "{\"id\": \"AE_ijzo7oGgrlM7\", \"type\": \"checkout.session.completed\", \"data\": {\"id\": \"cos-1b01sghpg100j\", \"amount\": \"100\", \"checkout_status\": \"complete\", \"client_reference\": null, \"currency\": \"XOF\", \"error_url\": \"https://example.com/error\", \"last_payment_error\": null, \"business_name\": \"Annas Apiaries\", \"payment_status\": \"succeeded\", \"success_url\": \"https://example.com/success\", \"wave_launch_url\": \"https://pay.wave.com/c/cos-1b01sghpg100j?a=100&c=XOF&m=Annas%20Apiaries\", \"when_completed\": \"2022-11-08T15:05:45Z\", \"when_created\": \"2022-11-08T15:05:32Z\", \"when_expires\": \"2022-11-09T15:05:32Z\", \"transaction_id\": \"TCN4Y4ZC3FM\"}}".getBytes("utf-8");
      os.write(input, 0, input.length);

      BufferedReader br = new BufferedReader(new InputStreamReader((conn.getInputStream())));
      String output;
      while ((output = br.readLine()) != null) {
        System.out.println(output);
      }
      conn.disconnect();
    } catch (Exception e) {
      e.printStackTrace();
    }
  }
}

require "uri"
require "net/http"

url = URI("<your webhook URL>")
https = Net::HTTP.new(url.host, url.port)
https.use_ssl = true

request = Net::HTTP::Post.new(url)
request["Content-Type"] = "application/json"
request["Wave-Signature"] = "t=1667920421,v1=53c971695230e9c51b1030d673eee76e70bbcdf8a7c5b8c1d44e0b8b1329647b"
request.body = "{\"id\":\"AE_ijzo7oGgrlM7\",\"type\":\"checkout.session.completed\",\"data\":{\"id\":\"cos-1b01sghpg100j\",\"amount\":\"100\",\"checkout_status\":\"complete\",\"client_reference\":null,\"currency\":\"XOF\",\"error_url\":\"https://example.com/error\",\"last_payment_error\":null,\"business_name\":\"Annas Apiaries\",\"payment_status\":\"succeeded\",\"success_url\":\"https://example.com/success\",\"wave_launch_url\":\"https://pay.wave.com/c/cos-1b01sghpg100j?a=100&c=XOF&m=Annas%20Apiaries\",\"when_completed\":\"2022-11-08T15:05:45Z\",\"when_created\":\"2022-11-08T15:05:32Z\",\"when_expires\":\"2022-11-09T15:05:32Z\",\"transaction_id\":\"TCN4Y4ZC3FM\"}"

response = https.request(request)
puts response.read_body

import requests

url = '<your webhook URL>'
payload = "{\"id\": \"AE_ijzo7oGgrlM7\", \"type\": \"checkout.session.completed\", \"data\": {\"id\": \"cos-1b01sghpg100j\", \"amount\": \"100\", \"checkout_status\": \"complete\", \"client_reference\": null, \"currency\": \"XOF\", \"error_url\": \"https://example.com/error\", \"last_payment_error\": null, \"business_name\": \"Annas Apiaries\", \"payment_status\": \"succeeded\", \"success_url\": \"https://example.com/success\", \"wave_launch_url\": \"https://pay.wave.com/c/cos-1b01sghpg100j?a=100&c=XOF&m=Annas%20Apiaries\", \"when_completed\": \"2022-11-08T15:05:45Z\", \"when_created\": \"2022-11-08T15:05:32Z\", \"when_expires\": \"2022-11-09T15:05:32Z\", \"transaction_id\": \"TCN4Y4ZC3FM\"}"
headers = {
  'Content-Type': 'application/json',
  'Wave-Signature': 't=1667920421,v1=53c971695230e9c51b1030d673eee76e70bbcdf8a7c5b8c1d44e0b8b1329647b'
}

response = requests.request("POST", url, headers=headers, data = payload)

print(response.text.encode('utf8'))

package main

import (
  "bytes"
  "fmt"
  "net/http"
)

func main() {
  url := "<your webhook URL>"
  method := "POST"

  payload := &bytes.Buffer{}
  payload.WriteString(`{"id": "AE_ijzo7oGgrlM7", "type": "checkout.session.completed", "data": {"id": "cos-1b01sghpg100j", "amount": "100", "checkout_status": "complete", "client_reference": null, "currency": "XOF", "error_url": "https://example.com/error", "last_payment_error": null, "business_name": "Annas Apiaries", "payment_status": "succeeded", "success_url": "https://example.com/success", "wave_launch_url": "https://pay.wave.com/c/cos-1b01sghpg100j?a=100&c=XOF&m=Annas%20Apiaries", "when_completed": "2022-11-08T15:05:45Z", "when_created": "2022-11-08T15:05:32Z", "when_expires": "2022-11-09T15:05:32Z", "transaction_id": "TCN4Y4ZC3FM"}`)
  client := &http.Client{}
  req, err := http.NewRequest(method, url, payload)

  if err != nil {
    fmt.Println(err)
    return
  }
  req.Header.Add("Content-Type", "application/json")
  req.Header.Add("Wave-Signature", "t=1667920421,v1=53c971695230e9c51b1030d673eee76e70bbcdf8a7c5b8c1d44e0b8b1329647b")

  res, err := client.Do(req)
  if err != nil {
    fmt.Println(err)
    return
  }
  defer res.Body.Close()

  fmt.Println(res)
}

using System;
using System.IO;
using System.Net;
using System.Text;

class Program
{
  static void Main()
  {
    var request = (HttpWebRequest)WebRequest.Create("<your webhook URL>");
    request.Method = "POST";
    request.ContentType = "application/json";
    request.Headers.Add("Wave-Signature", "t=1667920421,v1=53c971695230e9c51b1030d673eee76e70bbcdf8a7c5b8c1d44e0b8b1329647b");

    var data = Encoding.ASCII.GetBytes("{\"id\": \"AE_ijzo7oGgrlM7\", \"type\": \"checkout.session.completed\", \"data\": {\"id\": \"cos-1b01sghpg100j\", \"amount\": \"100\", \"checkout_status\": \"complete\", \"client_reference\": null, \"currency\": \"XOF\", \"error_url\": \"https://example.com/error\", \"last_payment_error\": null, \"business_name\": \"Annas Apiaries\", \"payment_status\": \"succeeded\", \"success_url\": \"https://example.com/success\", \"wave_launch_url\": \"https://pay.wave.com/c/cos-1b01sghpg100j?a=100&c=XOF&m=Annas%20Apiaries\", \"when_completed\": \"2022-11-08T15:05:45Z\", \"when_created\": \"2022-11-08T15:05:32Z\", \"when_expires\": \"2022-11-09T15:05:32Z\", \"transaction_id\": \"TCN4Y4ZC3FM\"}");

    using (var stream = request.GetRequestStream())
    {
      stream.Write(data, 0, data.Length);
    }

    var response = (HttpWebResponse)request.GetResponse();

    var responseString = new StreamReader(response.GetResponseStream()).ReadToEnd();
    Console.WriteLine(responseString);
  }
}

Webhook Delivery and Retries

Understanding how Wave handles webhook delivery is important for building robust integrations:

Retry Logic: - If your server doesn't respond with HTTP 2xx, Wave will retry sending the notification for up to 3 days - Respond with a successful status code (HTTP 2xx) immediately, then process the event asynchronously - This prevents unnecessary retries and ensures reliable event delivery

Delivery Guarantees: Wave will make every attempt to successfully deliver a webhook event, but due to the nature of distributed systems: - Events may occasionally be missed - Events may be delivered multiple times - Events may arrive out of order

Best Practice: Your system must be robust to missing, duplicate, and out-of-order webhook events. Use the event id field for idempotency checks.

Event Types

Wave sends webhook notifications for these events. Choose only the events your application needs to reduce unnecessary traffic.

When you've registered a webhook to receive notifications of some events and one of those events occurs, Wave sends a request to the webhook endpoint. The body of the request is an Event object containing an event type that describes what happened and a data object with the changed state.

As an example, when a checkout session is completed successfully, the event type would be checkout.session.completed and the data object would be a Checkout Session object containing the details of the checkout with a status of complete.

Checkout Events

checkout.session.completed Sent when a customer successfully completes a checkout session payment.

{
  "id": "EV_QvEZuDSQbLdI",
  "type": "checkout.session.completed",
  "data": {
    "id": "cos-18qq25rgr100a",
    "amount": "1000",
    "currency": "XOF",
    "payment_status": "succeeded",
    "checkout_status": "complete",
    "client_reference": "order-123",
    "transaction_id": "TCN4Y4ZC3FM",
    "when_completed": "2021-12-08T10:15:32Z"
  }
}

checkout.session.payment_failed Sent when a checkout session payment fails. You may receive multiple failures before a success.

{
  "id": "EV_8bO0d7TwW6Eq",
  "type": "checkout.session.payment_failed",
  "data": {
    "id": "cos-18qq25rgr100a",
    "payment_status": "failed",
    "checkout_status": "failed",
    "last_payment_error": {
      "code": "insufficient-funds",
      "message": "Insufficient balance"
    }
  }
}

B2B Events

b2b.payment_received Sent when your business receives a B2B payment from another Wave business.

{
  "id": "AE_ijzo7oGgrlM8",
  "type": "b2b.payment_received",
  "data": {
    "id": "b2b-1ndjb8dj81008",
    "amount": "39800",
    "currency": "XOF",
    "sender_id": "M_qn0zhfcKV1Tl",
    "client_reference": "invoice-456",
    "when_created": "2022-08-10T14:28:15Z"
  }
}

b2b.payment_failed Sent when a B2B payment to your business fails.

Merchant Payment Events

merchant.payment_received Sent when your business receives a payment from a customer.

{
  "id": "AE_ijzo7oGgrlM8",
  "type": "merchant.payment_received",
  "data": {
    "id": "T_46HS5COOWE",
    "amount": "990",
    "fee": "10",
    "currency": "XOF",
    "sender_mobile": "+221761110001",
    "merchant_name": "Your Business",
    "custom_fields": {
      "account_number": "abc-123"
    },
    "when_created": "2021-12-08T10:13:04Z"
  }
}

Test Events

test.test_event Used for testing your webhook endpoint. You can trigger these manually from the Business Portal.

Event Structure

All webhook events follow the same structure:

Field Type Description
id string Unique identifier for this event
type string The event type (e.g., "checkout.session.completed")
data object Event-specific data containing transaction details

IP Whitelisting

For enhanced security, we require whitelisting of all our public IP addresses.

Secret Rotation

It is a security best practice to occasionally rotate webhook secrets. In situations where your webhook secret has been exposed, you should always immediately rotate the secret. Wave may also prompt you to rotate the secrets if the webhook is too old, as shown in the following screenshot.

Webhook needs rotation

Rotating a secret requires recreating a webhook to obtain a new secret and then removing the old webhook. The simplest way to do this is using the duplicate option from the webhook list.

Webhook duplicate Webhook duplicate confirm

After confirming the duplication, you will be shown the secret of this new webhook. In the list of webhooks you should now see two webhooks with the same URL, secret strategy and event subscription. Their only difference will be the creation date.

Webhook duplicate

While these two webhooks are configured at the same time, your system will receive two notifications per event, one secured with the old secret and one with the new one.

Until you exchange these secrets in your system, the notifications related to the new webhook will be rejected by the validation logic. After changing the old secret for the new one, then the notifications related to the old secret will start being rejected by the validation, while the new ones will be now accepted. After changing the secret and ensuring you are accepting requests with the new webhook secret, you can remove the old secret by using the delete option from the webhook list.

Webhook delete Webhook delete

Step by step secret rotation

  1. Log into the business portal
  2. Go to Developers -> Webhooks
  3. On the list of webhooks, identify the one you want to rotate can select the option Duplicate from the three dots menu on the right
  4. Confirm the webhook duplication
    • From this point on, your system will receive two webhook notifications per event
  5. Copy the new webhook secret
  6. On your system, exchange the old webhook secret used for validation with the new one
  7. Send a test event from the new webhook and confirm on your server that you can receive and validate its header correctly
  8. Delete the old webhook by selecting the option Delete from the three dots menu on the right
    • Rotation is completed, your system will receive again only one webhook notification per event
